LSG T676-Z | Osram Opto Semi

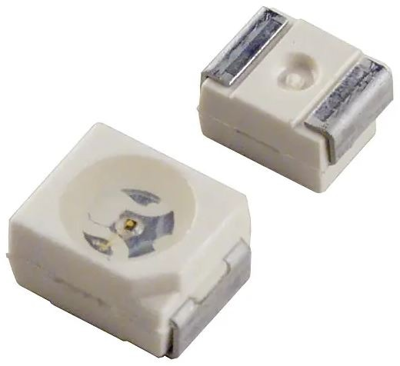

LED, SMD, PLCC-4, Ø 2.4 mm, red, 633 nm, 110 mcd to 0.18 cd, 120°, LSG T676-Z
Active
Total price
(
0.2225 €
* / pcs.)
4.45 €
Available: 1,955 pcs.
Next delivery: 2,000 pcs. on 2023-06-05
Quantity
Price per unit*
20 pcs.
0.2225 €
100 pcs.
0.1654 €
500 pcs.
0.1309 €
2000 pcs.
0.1083 €
4000 pcs.
0.0964 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Osram Opto Semi at Bürklin Elektronik
LED, LS GT676-Z, Osram Opto Semi
Two chip LEDs for indicators that allow to display red, green and yellow by color mixing
Features
- Package: white PLCC-4 package, colorless clear resin
- Chip technology: InGaAlP
- Typ. Radiation: 120° (Lambertian emitter)
- Corrosion Robustness Class: 3B
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 2 | |
| Width | 2.8 mm | |
| On-State Voltage | 2.5 V | |
| Forward Current | 30 mA | |
| diameter | 2.4 mm | |
| Colour of the LED | red | |
| Enclosure | PLCC-4 | |
| Length | 3.2 mm | |
| Light intensity min. | 0.11 cd | |
| Light intensity typ. | 0.18 cd | |
| Lens | clear | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 0.633 µm |
Logistics
| Country of origin | MY |
| Customs tariff number | 85414100 |
| MSL | MSL 2 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
