LS Y876-P2R1-1-Z | Osram Opto Semi
LED, SMD, red, 633 nm, 60 mcd to 0.224 cd, 120°, LS Y876-P2R1-1-Z
Unit Price (€ / pc.)
0.0464 € *
Standard delivery time from the manufacturer is: On Request

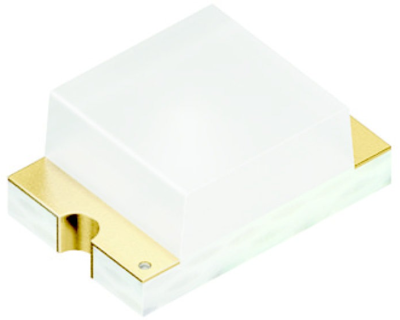

Micro side LED, LS Y876-P2R1-1-Z, Osram Opto Semi
The LS Y876-P2R1-1-Z is a micro side SMT LED with side emission. Due to is low package height it is ideal for applications in limited space environments.
Applications
- Cluster, Button backlighting
- Interior illumination
- White goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 120 ° | |
| Lens | clear | |
| Wavelength | 633 nm | |
| Forward Current | 30 mA | |
| max. operating temperature | 100 °C | |
| Length | 2.2 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.224 cd | |
| Assembly | SMD | |
| Width | 1.2 mm | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.06 cd | |
| On-State Voltage | 3.4 V | |
| Colour of the LED | red |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| MSL | MSL 2 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
