LS Q976-NR-1 | Osram Opto Semi
LED, SMD, 0603, red, 633 nm, 30 mcd to 0.18 cd, 160°, LS Q976-NR-1
Unit Price (€ / pc.)
0.0678 € *
Available: 15,097 pcs.
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0678 €
500 pcs.
0.0488 €
2500 pcs.
0.0393 €
16000 pcs.
0.0333 €
32000 pcs.
0.0286 €
*incl. VAT plus shipping costs
Subject to prior sale

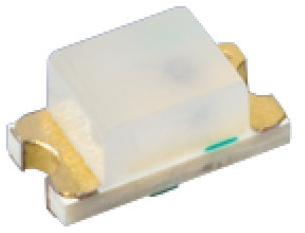

Chip LED, LS Q976-NR-1, Osram Opto Semi
Applications
- Access control and security
- Ambient lighting
- Appliances and Tools
- Digital diagnostic devices
- Display backlighting
- Home and building automation
- Material processing
- Smart surface
- Vital sign monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Wavelength | 633 nm | |
| Radiation angle | 160 ° | |
| Length | 1.6 mm | |
| Light intensity typ. | 0.18 cd | |
| Light intensity min. | 0.03 cd | |
| On-State Voltage | 2.6 V | |
| Lens | clear | |
| min. operating temperature | -30 °C | |
| Number of LEDs | 1 | |
| Width | 0.8 mm | |
| Assembly | SMD | |
| Forward Current | 25 mA | |
| Colour of the LED | red | |
| Enclosure | 0603 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 16,000 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
