LGT676-P2R1-24-0-20-R18-Z | Osram Opto Semi
LED, SMD, PLCC-2, Uni-Color green 572nm autom.to 0.112 cd, 120°, LG T676-P1Q2-24-Z
Unit Price (€ / pc.)
0.1678 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1678 €
125 pcs.
0.1238 €
500 pcs.
0.1000 €
2000 pcs.
0.0821 €
5000 pcs.
0.0702 €
*incl. VAT plus shipping costs
Subject to prior sale

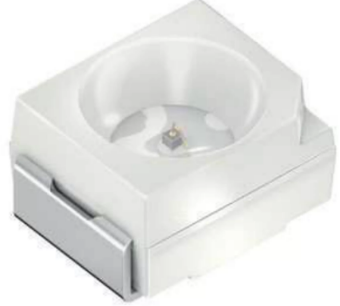

SMT LED, LGT676-P2R1-24-0-20-R18-Z, Osram Opto Semi
TOPLED, SMT LED with integrated reflector. It is a high quality product for all kind of applications.
Features
- Chip technology: InGaAlP
- Typ. Radiation: 120° (Lambertian emitter)
- Corrosion Robustness Class: 3B
Applications
- Cluster, Button Backlighting
- Electronic Equipment
- Interior Illumination (e.g. Ambient Map)
- White Goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | green | |
| Assembly | SMD | |
| Light intensity typ. | 0.14 cd | |
| Wavelength | 572 nm | |
| Light intensity min. | 0.056 cd | |
| max. operating temperature | 100 °C | |
| Radiation angle | 120 ° | |
| On-State Voltage | 2.4 V | |
| Width | 3 mm | |
| Forward Current | 30 mA | |
| Enclosure | PLCC-2 | |
| min. operating temperature | -40 °C | |
| Number of LEDs | 1 | |
| Length | 3.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
