Osram Opto Semi

LGR971-KN-1-Z | Osram Opto Semi

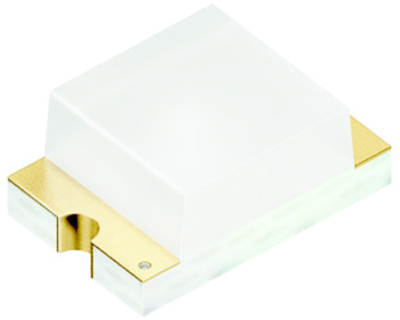

LED, SMD, 0805, green, 570 nm, 10 mcd to 0.045 cd, 160°, LGR971-KN-1-Z

default S
default L
Order No.:  66S9472
Manufacturer:  Osram Opto Semi
Manufacturer SKU
LGR971-KN-1-Z
Q62702P5179
Manufacturer series:  LG R971
EAN: 4099879010322
What is ECAD?
Total price
(0.06 € * / pcs.)
6.19 €
Available: 16,338 pcs.
Quantity
Price per unit*
100 pcs.
0.06 €
500 pcs.
0.05 €
2500 pcs.
0.04 €
16000 pcs.
0.03 €
32000 pcs.
0.03 €
*incl. VAT plus shipping costs
Show 3 variants
Please send price/quantity requests to info@buerklin.com
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Product by Osram Opto Semi at Bürklin Elektronik

LED, LGR971-KN-1-Z, Osram Opto Semi

Features

  • Package: SMT package 0805, colorless diffused resin
  • Chip technology: GaAsP
  • Corrosion Robustness Class: 3B
Technical specifications
Radiation angle 160 °
Number of LEDs 1
Width 1.35 mm
On-State Voltage 2.5 V
Forward Current 20 mA
Colour of the LED green
Enclosure 0805
Length 2.1 mm
Light intensity min. 0.01 cd
Light intensity typ. 0.045 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -30 °C
Assembly SMD
Wavelength 0.57 µm
Show similar products (0)
Logistics
Country of origin TW
Customs tariff number 85414100
MSL MSL 2
Original Packaging Reel with 2,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Light intensity typ.
Wavelength
Unit
min. operating temperature
Light intensity min.
Enclosure
Radiation angle
Forward Current
Unit
Width
Unit
Length
Unit
Lens
On-State Voltage
Unit
Assembly
Colour of the LED
max. operating temperature
1 item in 3 variations
Item description
Price list
Total
Light intensity typ.
Wavelength
min. operating temperature
Light intensity min.
Enclosure
Radiation angle
Forward Current
Width
Length
Lens
On-State Voltage
Assembly
Colour of the LED
max. operating temperature
LED, SMD, 0805, green, 570 nm, 10 mcd to 0.045 cd, 160°, LGR971-KN-1-Z
LED, SMD, 0805, green, 570 nm, 10 mcd to 0.045 cd, 160°, LGR971-KN-1-Z
Order No.:
 66S9472
Manufacturer:
 Osram Opto Semi
Manufacturer SKU
 LGR971-KN-1-Z
100 pcs.
0.06 €
500 pcs.
0.05 €
2500 pcs.
0.04 €
16000 pcs.
0.03 €
32000 pcs.
0.03 €
6.19 € *
Available: 16,338 pcs.
0.045 cd
0.57 µm
-30 °C
0.01 cd
0805
160 °
20 mA
1.35 mm
2.1 mm
clear
2.5 V
SMD
green
85 °C
LED, SMD, 0603, red, 633 nm, 30 mcd to 0.18 cd, 160°, LS Q976-NR-1
LED, SMD, 0603, red, 633 nm, 30 mcd to 0.18 cd, 160°, LS Q976-NR-1
Order No.:
 66S9766
Manufacturer:
 Osram Opto Semi
Manufacturer SKU
 LS Q976-NR-1
100 pcs.
0.07 €
500 pcs.
0.05 €
2500 pcs.
0.04 €
16000 pcs.
0.03 €
32000 pcs.
0.03 €
6.55 € *
Available: 12,968 pcs.
0.18 cd
0.633 µm
-30 °C
0.03 cd
0603
160 °
25 mA
0.8 mm
1.6 mm
clear
2.6 V
SMD
red
85 °C
LED, SMD, 0805, yellow, 587 nm, 0.28 cd, 160°, LY R976-Z
LED, SMD, 0805, yellow, 587 nm, 0.28 cd, 160°, LY R976-Z
Order No.:
 66S9876
Manufacturer:
 Osram Opto Semi
Manufacturer SKU
 LY R976-Z
16000 pcs.
0.03 €
0.00 € *
Currently not in stock, we will order for you
0.28 cd
0.587 µm
-30 °C
0805
160 °
20 mA
1.35 mm
2.1 mm
clear
2.5 V
SMD
yellow
85 °C
