LG T676-P1Q2-24-Z | Osram Opto Semi
LED, SMD, PLCC-2, Ø 2.4 mm, green, 570 nm, 50 mcd to 0.112 cd, 120°, LG T676-P1Q2-24-Z
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0503 € *
Available: 1,508 pcs.
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0503 €
50 pcs.
0.0470 €
200 pcs.
0.0440 €
*incl. VAT plus shipping costs
Subject to prior sale

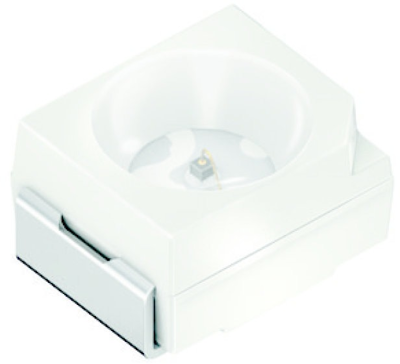

Top LED, LG T676-P1Q2-24-Z, Osram Opto Semi
The LG T676-P1Q2-24-Z is a SMT LED with integrated reflector. This product offers a high quality product for all kind of applications.
Applications
- Cluster, Button backlighting
- Electronic equipment
- Interior illumination
- White goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | PLCC-2 | |
| Number of LEDs | 1 | |
| Colour of the LED | green | |
| Light intensity min. | 0.05 cd | |
| Light intensity typ. | 0.112 cd | |
| Radiation angle | 120 ° | |
| Lens | clear | |
| On-State Voltage | 2.4 V | |
| Forward Current | 30 mA | |
| Wavelength | 570 nm | |
| Length | 3.4 mm | |
| Width | 3 mm | |
| diameter | 2.4 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| MSL | MSL 2 |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
