null | Osram Opto Semi

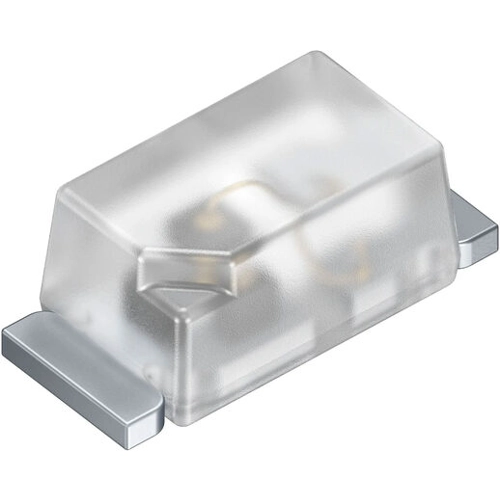

LED, SMD, 0603, green, 574 nm, 52 mcd, 130°
Order No.: 64S6504
Series: SMARTLED® 0603
Unit Price (€ / pc.)
0.1119 € *
Available: 8,000 pcs.
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1119 €
50 pcs.
0.0988 €
250 pcs.
0.0898 €
1000 pcs.
0.0808 €
4000 pcs.
0.0719 €
*incl. VAT plus shipping costs
Subject to prior sale
Smart Led, EELP41.22-PHRH-35-A8J8-20-R18, Osram Opto Semi
The SMARTLED 0603 is the product of choice for status indication and symbol backlighting in electronics. The small package size allows compact designs. The improved corrosion robustness and increased junction temperature makes the devices suitable for professional industrial equipment and applications.
Applications
- Appliances & Tools
- Display Backlighting
- Factory Automation
- Home & Building Automation
- Projection & Display
- Static Signaling
- Transportation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | 0603 | |
| Colour of the LED | green | |
| Light intensity min. | 0.052 cd | |
| Radiation angle | 130 ° | |
| Lens | clear | |
| On-State Voltage | 2.1 V | |
| Forward Current | 30 mA | |
| Wavelength | 574 nm | |
| Length | 16 mm | |
| Width | 0.8 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2 |
| Country of origin | TW |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
