NUP3105LT1G | onsemi

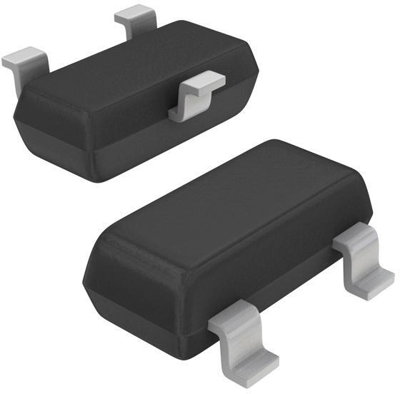

SMD TVS diode, bidirectional, 350 W, 32 V, SOT-23-3, onsemi NUP3105LT1G
Unit Price (€ / pc.)
0.1952 € *
Standard delivery time from the manufacturer is: On Request
TVS Diode, NUP3105LT1G, ON Semiconductor
The SZ/NUP3105L has been designed to protect the CAN transceiver in 24 V systems from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT−23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.
FEATURES
- 350 W Peak Power Dissipation per Line (8/20 sec Waveform)
- Low Reverse Leakage Current (< 100 nA)
- Flammability Rating UL 94 V−0
- Low Capacitance High−Speed CAN Data Rates
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 32 V | |
| Assembly | SMD | |
| Enclosure | SOT-23-3 | |
| Pulse power loss | 350 W | |
| Capacity | 30 pF | |
| Version | bidirectional | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Breakdown voltage | 35.6 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
