MBRM140T1G | onsemi

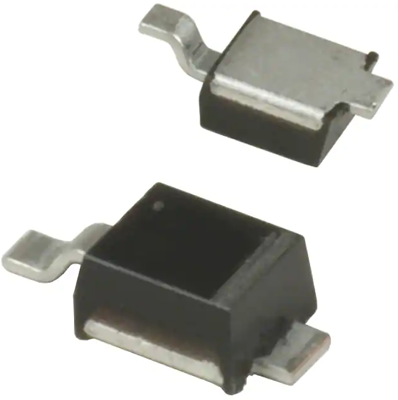

Schottky rectifier diode, 40 V (RRM), 1 A, DO-216AA, MBRM140T1G
Unit Price (€ / pc.)
0.2154 € *
Standard delivery time from the manufacturer is: On Request
Schottky diode, MBRM140T1G, onsemi
The Schottky POWERMITE employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop-reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount rectifier. With its unique heatsink design, the POWERMITE has the same thermal performance as the SMA while being 50 % smaller in footprint area, and delivering one of the lowest height profiles, < 1.1 mm in the industry.
Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards.
Features
- Low forward voltage provides higher efficiency and extends battery life
- Low thermal resistance
- AEC-Q101 qualified and PPAP capable
Applications
- AC-DC/DC-DC converters
- Reverse battery protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 125 °C | |
| Forward Current | 1 A | |
| max. operating temperature | 150 °C | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Assembly | SMD | |
| Number of diodes | 1 | |
| min. operating temperature | -55 °C | |
| Enclosure | DO-216AA | |
| Junction temperature (min.) | -55 °C | |
| Version | schottky rectifier diode |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
