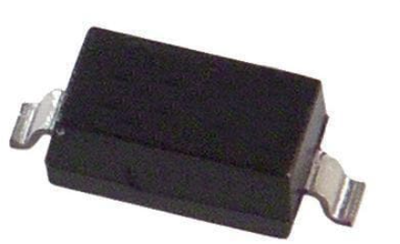

MBR0520LT1G | onsemi
Schottky rectifier diode, 20 V (RRM), 0.5 A, SOD-123, MBR0520LT1G
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0509 € *
Available: 580 pcs.
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0509 €
50 pcs.
0.0475 €
200 pcs.
0.0445 €
*incl. VAT plus shipping costs
Subject to prior sale
Schottky Diode, MBR0520LT1G, onsemi
The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop−reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Features
- Guardring for Stress Protection
- Very Low Forward Voltage
- Case: Epoxy, Molded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky rectifier diode | |
| Enclosure | SOD-123 | |
| Voltage V RRM (peak reverse voltage) | 20 V | |
| Forward Current | 0.5 A | |
| Number of diodes | 1 | |
| Junction temperature (min.) | -65 °C | |
| Junction temperature (max.) | 125 °C | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 3 |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
