MBRS3201T3G | onsemi

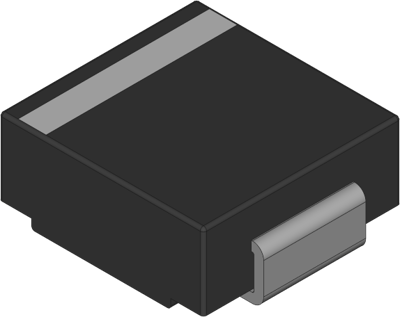

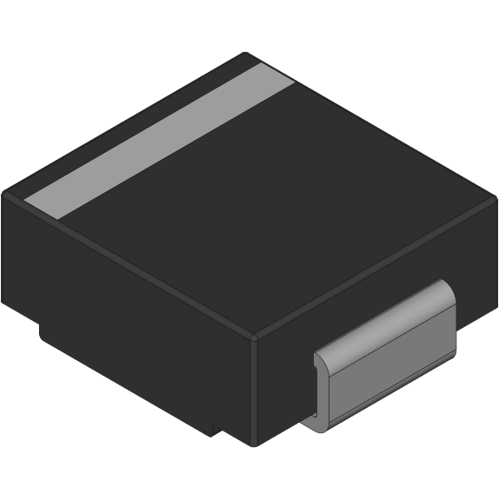

Fast rectifier diode, 200 V, 3 A, SMC 2-LEAD, MBRS3201T3G
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 10 Weeks
Schottky Rectifier, MBRS3201T3G, ON Semiconductor
This Schottky Rectifier is a state-of-the-art high voltage fast-soft recovery Schottky device perfectly designed for use where ultra fast devices fall short in switching performance.
Features
- Lower Forward Voltage than any Ultrafast Rectifier: VF < 0.59 V at 150°C
- Fast Switching Speed: Reverse Recovery Time (tRR) < 35 ns
- Soft Recovery Characteristics: Softness Factor (tb/ta) ≥ 1
- Highly Stable Over Temperature
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge blocking voltage V RMS | 200 V | |
| Assembly | SMD | |
| Junction temperature (max.) | 150 °C | |
| Product type | fast rectifier diode | |
| Rated blocking voltage | 200 V | |
| Forward Current | 3 A | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Enclosure | SMC 2-LEAD | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CA |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
