HCPL2630M | onsemi

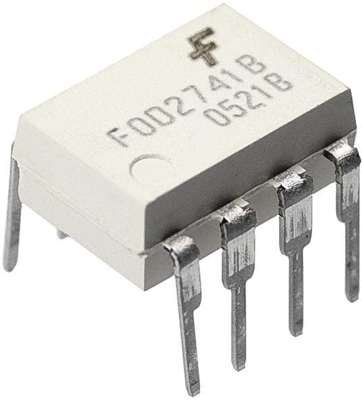

Onsemi optocoupler, DIP-8, HCPL2630M
Order No.: 66S7960
EAN: 4099879000828
MPN:
HCPL2630M
Unit Price (€ / pc.)
2.3800 € *
Next delivery: 20 pcs. on 2026-06-19
Available in 5 Days: 640 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.2015 €
50 pcs.
2.0230 €
200 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, HCPL2630M, ONS
The HCPL2630M consist of a 850 nm AlGaAs LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, there by permitting wired OR outputs. The switching parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/s.
Applications
- Ground loop elimination
- Line receiver, data transmission
- Data multiplexing
- Switching power supply
- Pulse transformer replacement
- Computer-peripheral Interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | DIP-8 | |
| Data transmission rate | 10000000 mb/s | |
| Number of channels | 2 | |
| Isolation voltage | 2.5 kV | |
| Output current | 50 mA | |
| Rise time | 50 s | |
| Fall time | 12 s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
