LM258DR2G | onsemi

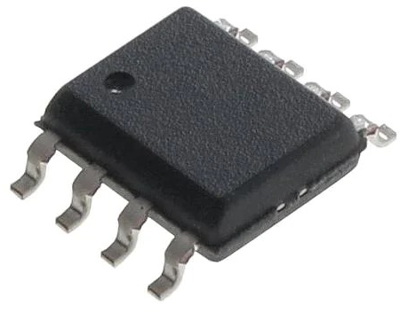

Dual general-purpose operational amplifier, SOIC-8, LM258DR2G
Unit Price (€ / pc.)
0.1975 € *
Standard delivery time from the manufacturer is: 2 Weeks
Dual operational amplifier, ED-582, Brainboxes
This dual operational amplifier features low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. This amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V.
Features
- Short Circuit Protected Outputs
- Internally Compensated
- Low Input Bias Currents
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Number of channels | 2 | |
| Version | general-purpose operational amplifier | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
