FDMT80040DC | onsemi

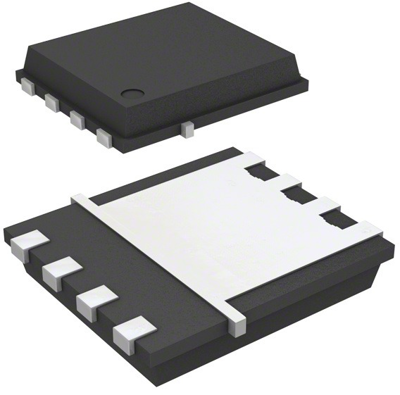

Onsemi N channel dual cool power trench MOSFET, 40 V, 420 A, DualCool88, FDMT80040DC
Unit Price (€ / pc.)
5.8072 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
50 pcs.
5.6525 €
250 pcs.
5.5454 €
*incl. VAT plus shipping costs
Subject to prior sale
Power trench , FDMT80040DC, onsemi
The FDMT80040DC is produced using an advanced PowerTrench process. Advancements in both silicon and Dual CoolTM package technologies have been combined to offer the lowest rDS(on) while maintaining excellent switching performance by extremely low Junction-to-Ambient thermal resistance.
Features
- Advanced package and silicon combination for low rDS(on) and high efficiency
- Next generation enhanced body diode technology
- Engineered for soft recovery
- RoHS compliant
Applications
- Oring FET / Load awitch
- Synchronous rectification
- DC-DC Conversion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DualCool88 | |
| Gate Charge Qg @10V (nC) | 2.41x10<sup>-7</sup> C | |
| Version | N channel | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| max. Voltage | 40 V | |
| min. operating temperature | -55 °C | |
| drain-source on resistance RDS (on) max @VGS=10V | 0.56 mΩ | |
| Max. current | 420 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85412900 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
