FDMT1D3N08B | onsemi

Onsemi N channel dual cool power trench MOSFET, 80 V, 164 A, DualCool88, FDMT1D3N08B

Order No.: 54S1022
EAN: 4099879034793
MPN:
FDMT1D3N08B
Series: FDMT1
FDMT1D3N08B onsemi MOSFETs

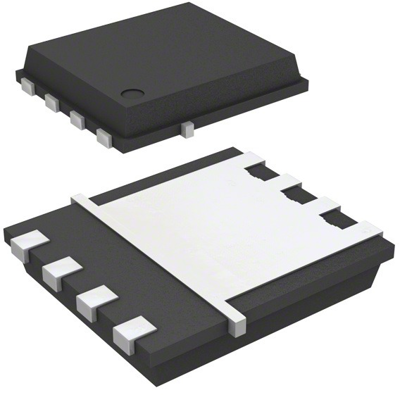

Image may differ
Unit Price (€ / pc.)
4.5815 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13,744.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
4.5815 €

Power trench , FDMT1D3N08B, onsemi

The FDMT1D3N08B is produced using an advanced PowerTrench process. Advancements in both silicon and Dual CoolTM package technologies have been combined to offer the lowest rDS(on) while maintaining excellent switching performance by extremely ow Junction-to-Ambient thermal resistance.

Features

  • Advanced package and silicon combination for low rDS(on) and high efficiency
  • Next generation enhanced body diode technology
  • Engineered for soft recovery
  • RoHS compliant

Applications

  • Oring FET / Load awitch
  • Synchronous rectification
  • DC-DC Conversion
Technical specifications
max. Voltage 80 V
Assembly SMD
Enclosure DualCool88
Max. current 164 A
Version N channel
min. operating temperature -55 °C
max. operating temperature 150 °C
Gate Charge Qg @10V (nC) 1.86x10<sup>-7</sup> C
drain-source on resistance RDS (on) max @VGS=10V 1.35 mΩ
Logistics
Customs tariff number 85412900
MSL MSL 3
Original Packaging Reel with 3,000 pieces
Compliance
SVHC free Yes
RoHS conform Yes
