N24S128C4DYT3G | onsemi

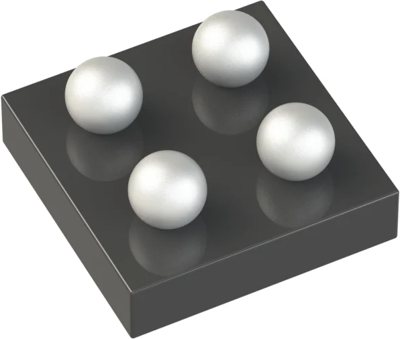

EEPROM memory, N24S128C4DYT3G, onsemi

The N24S128C4DYT3G is a 128 Kb Serial CMOS EEPROM, internally organized as 816,384 words of 8 bits each. It features a 64-byte page write buffer and supports both the Standard (100 kHz), Fast (400 kHz) and Fast-Plus (1 MHz) I²C protocol. The devices also feature a 128-bit factory-set read-only Unique ID, a 64-byte Secure Data Page that can be permanently locked against future changes, and Software Write Protection of the entire array. A Device Configuration Register enables the user to specify the last 3 bits of the Device Address, allowing up to eight N24S128C4DYT3G devices to be addressed on the same bus.

Features

• Lockable Secure Data Page
• User Programmable Write Protection
• User Programmable Device Address
• Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs
• Low Power CMOS Technology
