MM74HCT04M | onsemi

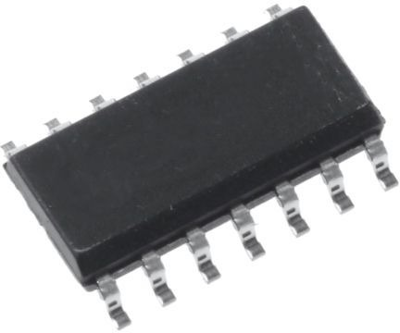

Hex Inverter, SOIC-14, onsemi MM74HCT04M
Unit Price (€ / pc.)
1.0472 € *
Available: 235 pcs.
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.8449 €
55 pcs.
0.7140 €
110 pcs.
0.6188 €
550 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
Hex inverter, MM74HCT04M, ONS
The MM74HCT04M is a logic function fabricated by using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS-low quiescent power and wide power supply range. It features low power dissipation and fast switching times. All inputs are protected from static discharge by internal diodes to VCC and ground.
Features
- Fast switching
- Low power
- High fan out
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Assembly | SMD | |
| Output current | 4.8 mA | |
| Enclosure | SOIC-14 | |
| Input voltage | 5.5 V | |
| Product type | Hex Inverter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | US |
| Original Packaging | Bar with 55 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
