MM74HC574MTC | onsemi

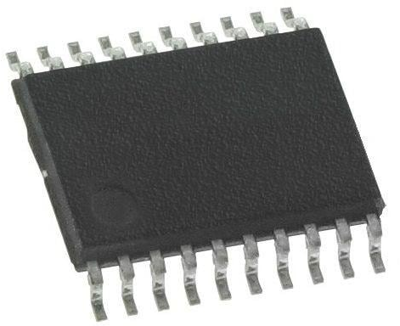

Octal D-Type Edge-Triggered Flip-Flop, TSSOP-20, onsemi MM74HC574MTC
No longer in assortment
Unit Price (€ / pc.)
0.2083 € *
Available: 168 pcs.
3-STATE Octal D-Type Edge-Triggered Flip-Flop, MM74HC574MTC, FAIRCHILD
The MM74HC574 high speed octal D-type flip-flops utilize advanced silicon-gate P-well CMOS technology. They pos-sess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, these devices are ide-ally suited for interfacing with bus lines in a bus organized system.
Features
- Typical propagation delay: 18 ns
- Wide operating voltage range: 2V–6V
- Low input current: 1 PA maximum
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Product type | Octal D-Type Edge-Triggered Flip-Flop | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Output current | 7.8 mA | |
| Enclosure | TSSOP-20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
