MM74HC00M | onsemi

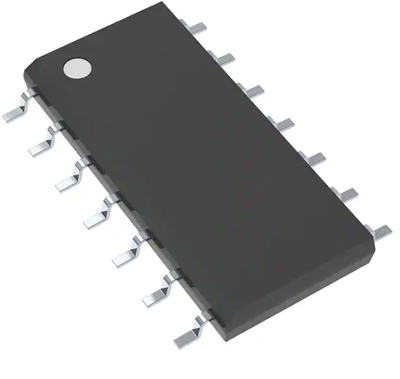

Quad 2-input NAND Gate, SOIC-14, onsemi MM74HC00M
Order No.: 62S9058
MPN:
MM74HC00M
Unit Price (€ / pc.)
0.2451 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2451 €
10 pcs.
0.2380 €
25 pcs.
0.2309 €
100 pcs.
0.2154 €
250 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale
NAND Gate, MM74HC00M, ON Semiconductor
The MM74HC00M NAND gate utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. This gate has buffered output and has a high noise immunity and the ability to drive 10 LS-TTL loads. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Features
- Typical propagation delay: 8ns
- Low quiescent current
- Low input current
Technical specifications
| Enclosure | SOIC-14 | |
| Output current | 5.2 mA | |
| max. operating temperature | 85 °C | |
| Product type | Quad 2-input NAND Gate | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Input voltage | 6 V |
Download
Logistics
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 57 pieces |
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | not_specified |
