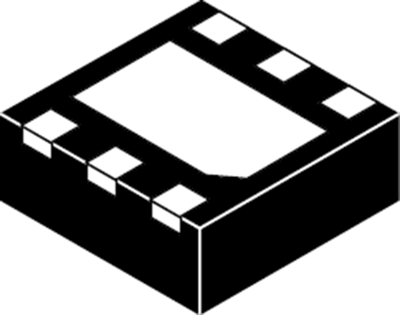

NCP705MT28TCG | onsemi
Voltage regulator, 2.8 VDC, 500 mA, positive, SOT-23, NCP705MT28TCG
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: On Request
Voltage regulator, NCP705MT28TCG, ONS
The NCP705MT28TCG is a 500 mA LDO that provides the engineer with a very stable, accurate voltage with ultra low noise and very high power supply rejection ratio (PSRR) suitable for RF applications. This device doesn’t require any additional noise bypass capacitor to achieve ultra low noise performance.
Features
- Stable with a 1 µF ceramic output capacitor
- Thermal shutdown and current limit protections
- Ultra-low quiescent current of typ. 13 µA
- ±2 % accuracy over load/line/temperature
Applications
- PDAs, mobile phones, GPS, smartphones
- Wireless handsets, wireless LAN, bluetooth, zigbee interfaces
- Portable medical equipment
- Other battery powered applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-23 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 2.5-5.5 V | |
| Output voltage DC | 2.8 VDC | |
| Output current | 500 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
