NCP703SN19T1G | onsemi

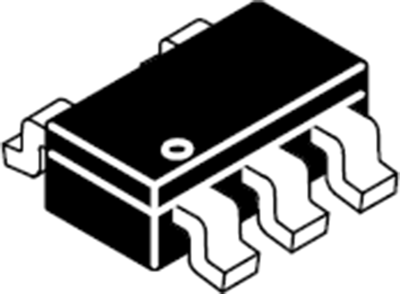

Voltage regulator, 1.9 VDC, 300 mA, positive, SOT-23, NCP703SN19T1G
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 2 Weeks
Voltage regulator, NCP703SN19T1G, ONS
The NCP703SN19T1G is one of the best in class regulator for providing both low noise performance (PSRR of 68 dB and noise levels typically < 13 uVrms) and a low quiescent operating current (< 12 uA). In contrast to the tradeoff of noise vs. consumption found in some CMOS products, the NCP703SN19T1G does not compromise, making it an ideal device for use with image sensors in cell phones and for noise sensitive circuits in other battery products.
Features
- Ultra low quiescent current of typ. 12 µA
- ±2% accuracy over load/line/temperature
- Thermal shutdown and current limit protections
- Stable with a 1 µF ceramic output capacitor
Applications
- PDAs, mobile phones, GPS, smartphones
- Wireless handsets, wireless LAN, bluetooth, zigbee interfaces
- Portable medical equipment
- Other battery powered applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-23 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 2-5.5 V | |
| Output voltage DC | 1.9 VDC | |
| Output current | 300 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
