MC78M05CTG | onsemi

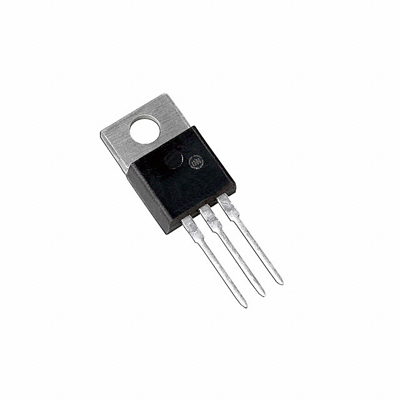

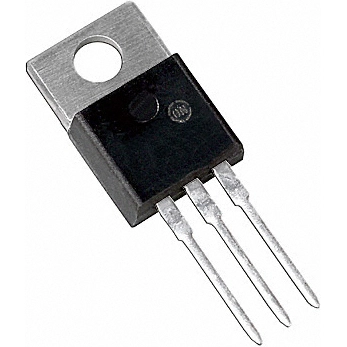

Voltage regulator, 5 VDC, 500 mA, positive, TO-220, MC78M05CTG

Order No.: 54S1007
EAN: 4099879101440
MPN:
MC78M05CTG
Series: MC78

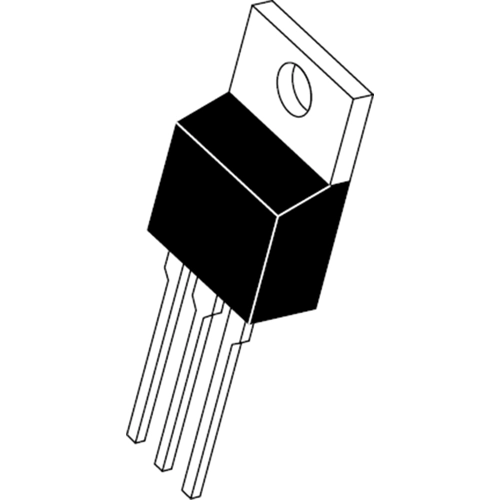

MC78M05CTG onsemi Linear Voltage Regulators (LDOs)
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
0.5474 €

Voltage regulator, MC78M05CTG, onsemi

Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions.

Features

  • No external components required
  • Internal thermal overload protection
  • Internal short circuit current limiting
  • Pb-free device
Technical specifications
Assembly THT
Enclosure TO-220
Version fixed
Number of Regulators 1
Input voltage AC 7-35 V
Output voltage DC 5 VDC
Output current 500 mA
Polarity positive
min. operating temperature 0 °C
max. operating temperature 125 °C
Logistics
Customs tariff number 85423390
Original Packaging Bar with 50 pieces
Compliance
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
