MC7818CTG | onsemi

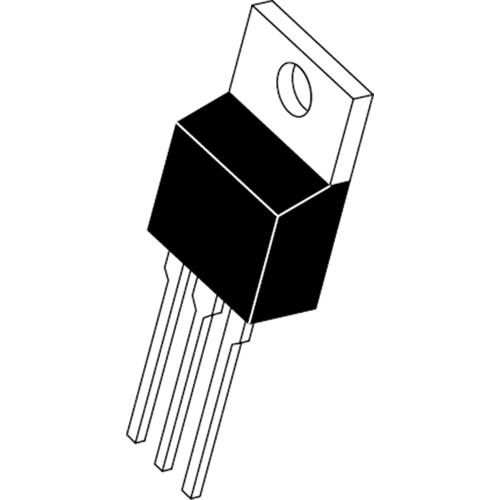

Voltage regulator, 18 VDC, 1 A, positive, TO-220, MC7818CTG
Discontinued
Unit Price (€ / pc.)
0.7497 € *
Available: 16 pcs.
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7497 €
10 pcs.
0.7021 €
50 pcs.
0.6664 €
100 pcs.
0.6188 €
500 pcs.
0.5831 €
*incl. VAT plus shipping costs
Subject to prior sale
Positive Voltage Regulator, MC7818CTG, ON Semiconductor
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
FEATURES
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
Technical Data
- Temperature: 0°C to 125°C
- Output current: 1 A
- Output voltage range: 18 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 20-35 V | |
| Output voltage DC | 18 VDC | |
| Output current | 1 A | |
| Polarity | positive | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
