LM317MBDTRKG | onsemi

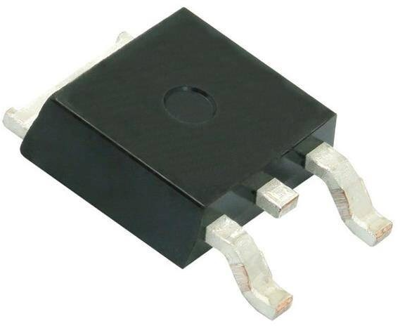

Voltage regulator, 1.2-37 VDC, 500 mA, positive, TO-252, LM317MBDTRKG
Unit Price (€ / pc.)
0.8092 € *
Available: 2,401 pcs.
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8092 €
25 pcs.
0.6545 €
100 pcs.
0.5474 €
250 pcs.
0.4760 €
1000 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale
Voltage regulator, LM317MBDTRKG, ONS
The LM317MBDTRKG is an adjustable three-terminal positive linear voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This linear voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage.
Features
- Internal thermal overload protection
- Internal short circuit current limiting
- Eliminates stocking many fixed voltages
- Output transistor safe-area compensation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | TO-252 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 4.2-40 V | |
| Output voltage DC | 1.2-37 VDC | |
| Output current | 500 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 2,500 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
