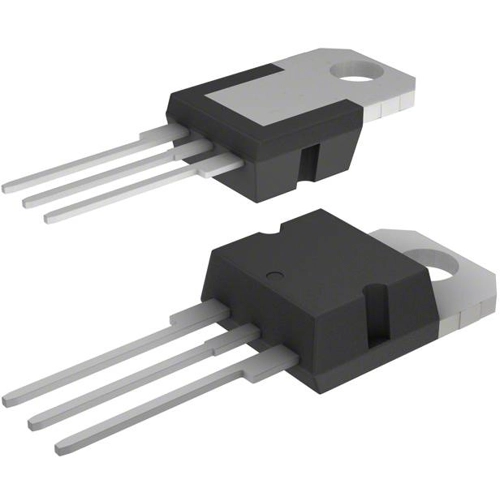

TIP50G | onsemi
Bipolar junction transistor, NPN, 1 mA, 400 V, THT, TO-220, TIP50G
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: 2 Weeks
High voltage transistor, TIP50G, onsemi
This high voltage NPN silicon power transistor is designed for line operated audio output amplifier, SWITCHMODE power supply drivers and other switching applications.
Features
- Compact TO-220 package
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220 | |
| Version | NPN | |
| Saturation voltage | 1 mV | |
| Collector current | 1 mA | |
| max.voltage between collector and emitter Vceo | 400 V | |
| max.voltage between collector and base Vcbo | 500 V | |
| Power dissipation | 40 W | |
| Transit frequency fTmin | 10 MHz | |
| Min DC gain | 30 mA | |
| Max DC amplification | 150 mA | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85419000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
