TIP2955G | onsemi

Bipolar junction transistor, PNP, 1.5 A, 60 V, THT, TO-247, TIP2955G

Order No.: 25S3006
EAN: 4099879029751
MPN:
TIP2955G
Series: TIP
TIP2955G onsemi Bipolar Transistors

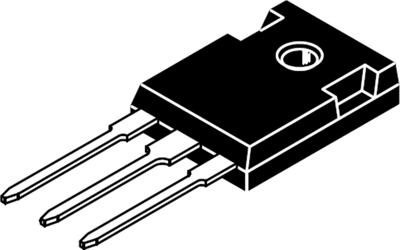

Image may differ
Unit Price (€ / pc.)
1.5232 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
913.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
1.5232 €

Power transistor, TIP2955G, onsemi

This complementary silicon transistor is designed as general-purpose switching and for amplifier applications.

Technical specifications
Filter Property Value
Min DC gain 5 mA
Enclosure TO-247
Version PNP
max. operating temperature 150 °C
Saturation voltage 3 V
Collector current 1.5 A
Transit frequency fTmin 2.5 MHz
Assembly THT
max.voltage between collector and base Vcbo 100 V
Power dissipation 90 W
Max DC amplification 70 mA
max.voltage between collector and emitter Vceo 60 V
min. operating temperature -65 °C
Logistics
Property Value
Original Packaging Bar with 30 pieces
Customs tariff number 85412900
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
