TIP147G | onsemi

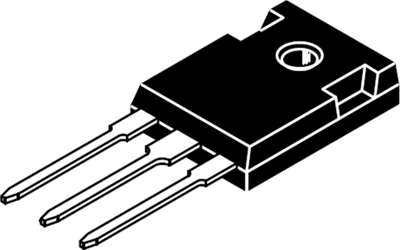

Darlington transistor, PNP, 10 mA, 100 V, THT, TO-247, TIP147G
Order No.: 25S3017
MPN:
TIP147G
Unit Price (€ / pc.)
4.3435 € *
Standard delivery time from the manufacturer is: 2 Weeks
Designed for general−purpose amplifier and low frequency switching applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min DC gain | 500 | |
| Enclosure | TO-247 | |
| Collector current | 10 mA | |
| Power dissipation | 125 W | |
| max. operating temperature | 150 °C | |
| Assembly | THT | |
| min. operating temperature | -65 °C | |
| Version | PNP | |
| max.voltage between collector and emitter Vceo | 100 V | |
| max.voltage between collector and base Vcbo | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
