BD244CG | onsemi

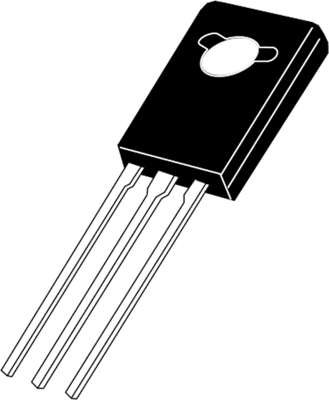

Bipolar junction transistor, PNP, 6 A, 100 V, THT, TO-220, BD244CG
Unit Price (€ / pc.)
1.0448 € *
Available: 27 pcs.
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0448 €
100 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale
Transistor, BD244CG, ON Semiconductor
These devices are designed for use in general purpose amplifier and switching applications.
Features
- High Current Gain Bandwidth Product
- These Devices are Pb−Free and are RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collector current | 6 A | |
| Transit frequency fTmin | 3 MHz | |
| Enclosure | TO-220 | |
| max.voltage between collector and emitter Vceo | 100 V | |
| max.voltage between collector and base Vcbo | 100 V | |
| Min DC gain | 15 mA | |
| Power dissipation | 65 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | PNP | |
| Assembly | THT | |
| Saturation voltage | 1.5 V | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Country of origin | CN |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
