BD135G | onsemi

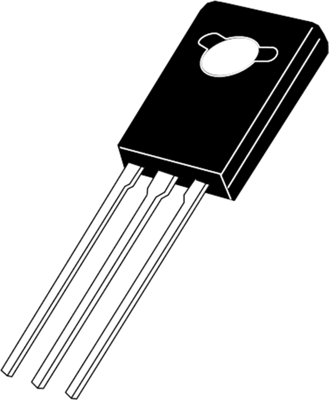

Bipolar junction transistor, NPN, 1.5 A, 45 V, THT, TO-225AA, BD135G
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2975 € *
Available: 2,281 pcs.
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2975 €
25 pcs.
0.2737 €
100 pcs.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BD135G, onsemi
This NPN power bipolar junction transistor is designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
Features
- Halogen free
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-225AA | |
| Version | NPN | |
| Saturation voltage | 500 mV | |
| Collector current | 1.5 A | |
| max.voltage between collector and emitter Vceo | 45 V | |
| max.voltage between collector and base Vcbo | 45 V | |
| Power dissipation | 12.5 W | |
| Min DC gain | 40 mA | |
| Max DC amplification | 250 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
