BCX19LT1G | onsemi

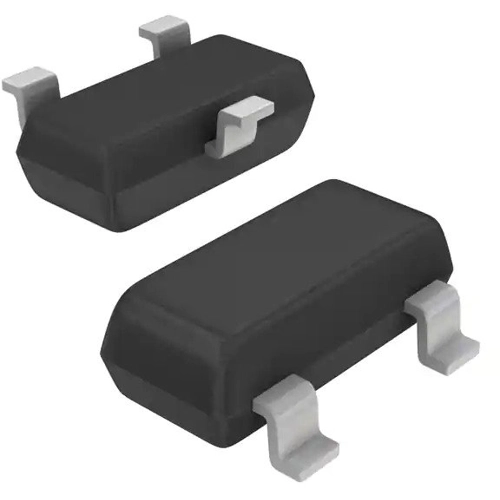

Bipolar junction transistor, NPN, 500 mA, 45 V, SMD, SOT-23, BCX19LT1G
Unit Price (€ / pc.)
0.0563 € *
Available in 5 Days: 2,000 pcs. - if ordered today
NPN transistor, BCX19LT1G, onsemi
This NPN bipolar transistor is designed for use in linear and switching applications. The device is housed in the SOT-23 package, which is designed for lower power surface mount applications.
Features
- Halogen free
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power dissipation | 0.225 W | |
| Version | NPN | |
| Min DC gain | 100 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 620 mV | |
| max.voltage between collector and emitter Vceo | 45 V | |
| Enclosure | SOT-23 | |
| Collector current | 500 mA | |
| Max DC amplification | 600 mA | |
| Assembly | SMD | |
| max.voltage between collector and base Vcbo | 50 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85412900 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
