BCW70LT1G | onsemi
Bipolar junction transistor, PNP, -100 mA, -45 V, SMD, SOT-23, BCW70LT1G
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0203 € *
Available: 1,566 pcs.
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0203 €
50 pcs.
0.0190 €
200 pcs.
0.0178 €
*incl. VAT plus shipping costs
Subject to prior sale

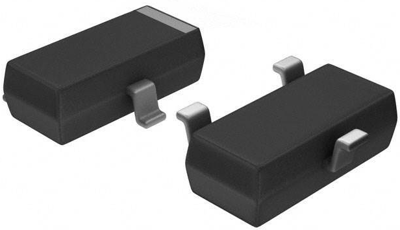

PNP transistor, BCW70LT1G, onsemi
This PNP bipolar transistor is designed for use in linear and switching applications. The device is housed in the SOT-23 package, which is designed for lower power surface mount applications.
Features
- Halogen free
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-23 | |
| Version | PNP | |
| Saturation voltage | -600 mV | |
| Collector current | -100 mA | |
| max.voltage between collector and emitter Vceo | -45 V | |
| Power dissipation | 225 mW | |
| Transit frequency fTmin | 75 MHz | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | PH |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
