BCP68T1G | onsemi
Bipolar junction transistor, NPN, 1 A, 25 V, SMD, SOT-23, BCP68T1G
Unit Price (€ / pc.)
0.2059 € *
Standard delivery time from the manufacturer is: On Request
NPN transistor, BCP68T1G, onsemi

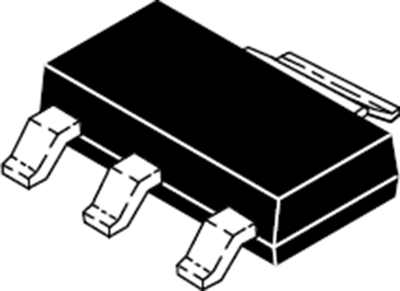

This NPN Silicon Epitaxial Transistor is designed for use in low voltage, high current applications. The device is housed in the SOT-223 package, which is designed for medium power surface mount applications.
Features
- Halogen free
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 60 MHz | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 500 mV | |
| Min DC gain | 85 mA | |
| Max DC amplification | 375 mA | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 25 V | |
| min. operating temperature | -65 °C | |
| max.voltage between collector and base Vcbo | 20 V | |
| Power dissipation | 1.5 W | |
| Enclosure | SOT-23 | |
| Collector current | 1 A | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
