BCP56-16T1G | onsemi
Bipolar junction transistor, NPN, 1 A, 80 V, SMD, SOT-23, BCP56-16T1G
Unit Price (€ / pc.)
0.4998 € *
Available: 100 pcs.
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.3451 €
100 pcs.
0.2975 €
500 pcs.
0.2618 €
1000 pcs.
0.2499 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BCP56-16T1G, onsemi

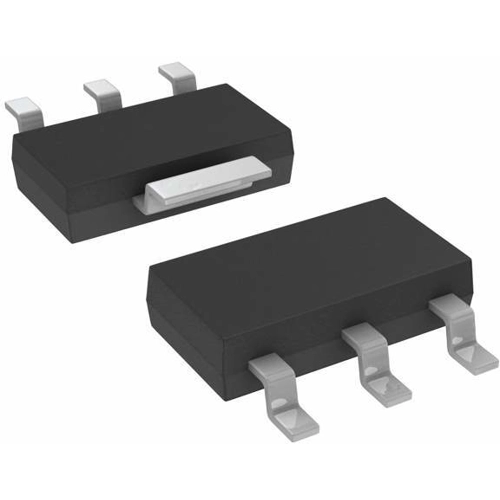

This NPN bipolar junction transistor is designed for use in audio amplifier applications. The device is housed in the SOT-223 package, which is designed for medium power surface mount applications.
Features
- Halogen free
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 130 MHz | |
| Saturation voltage | 500 mV | |
| Rated current | 1 A | |
| max. operating temperature | 150 °C | |
| Max DC amplification | 250 mA | |
| min. operating temperature | -65 °C | |
| Version | NPN | |
| Min DC gain | 100 mA | |
| max.voltage between collector and base Vcbo | 100 V | |
| Enclosure | SOT-23 | |
| max.voltage between collector and emitter Vceo | 80 V | |
| Collector current | 1 A | |
| Power dissipation | 1.5 W | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
