BC807-16LT1G | onsemi

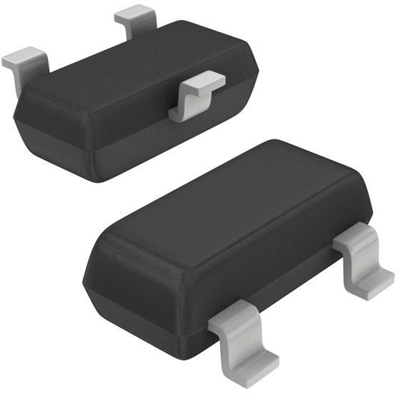

Bipolar junction transistor, PNP, -500 mA, -45 V, SMD, SOT-23, BC807-16LT1G
Unit Price (€ / pc.)
0.0904 € *
Available: 2,990 pcs.
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0904 €
100 pcs.
0.0714 €
500 pcs.
0.0571 €
1000 pcs.
0.0512 €
2500 pcs.
0.0464 €
*incl. VAT plus shipping costs
Subject to prior sale
PNP transistor, BC807-16LT1G, onsemi
This PNP bipolar transistor is designed for use in linear and switching applications. The device is housed in the SOT-23 package, which is designed for lower power surface mount applications.
Applications
- Reverse polarity protection
- Inductive load protection
- Over-voltage protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Max DC amplification | 250 mA | |
| Transit frequency fTmin | 100 MHz | |
| Saturation voltage | -700 mV | |
| Min DC gain | 100 mA | |
| Power dissipation | 0.225 W | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | -45 V | |
| max.voltage between collector and base Vcbo | -50 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | PNP | |
| Collector current | -500 mA | |
| Rated current | 500 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
