SS-10GL2 | Omron

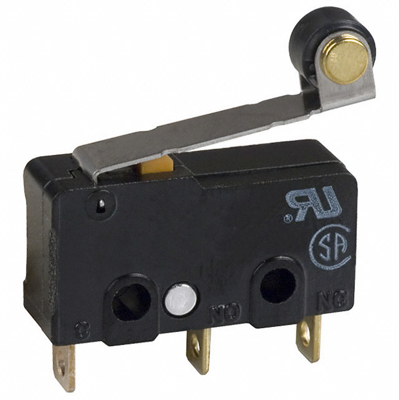

Subminiature snap-action switch, On-On, solder connection, roller lever, 0.49 N, 10.1 A/250 VAC, IP40, SS-10GL2
Subminiature snap-action switches, type Omron SS.
Easy installation thanks to limiting of backlash from the housing, wide switching current range and (depending on the type) terminals for soldering or PCB mounting; Contact assembly: 1x changeover. Dielectric strength between live parts and ground: 1500 VAC (60 s). Mechanical switching rate: max. 400 cycles/minute. Ambient temperatures: –25 to +85 °C. Certifications: all types to UL and CSA, type SS-5 to VDE.
High-performance version with solder terminals, type SS-10.
Breaking capacity: 10.1 A/250 VAC. Contact version: rivet contacts. Contact material: silver alloy.
Technical attributes (type, version, actuating force, max. contact resistance (in new state)): SS-10GL2, with roll actuator, 0.49 N, 50 mohm
| Filter | Property | Value |
|---|---|---|
| Design | straight | |
| actuating force | 0.49 N | |
| Switching point | 14.5 mm ±0.8 mm | |
| Connection | solder connection | |
| Latching switching function | On-On | |
| Actuator | roller lever | |
| Protection class | IP40 | |
| Breaking capacity | 10.1 A/250 VAC |
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | JP |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
