SS-01 | Omron

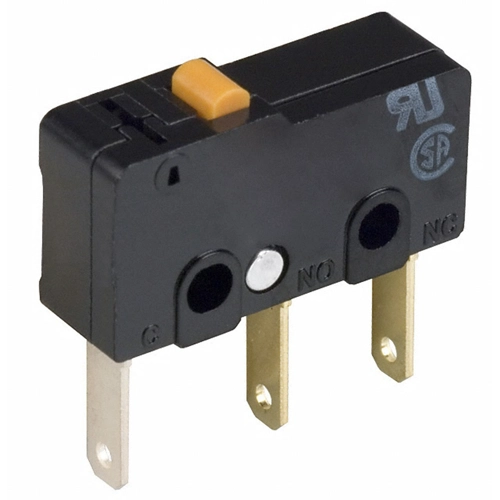

Subminiature snap-action switch, On-On, solder connection, pin plunger, 1.47 N, 0.1 A/125 VAC, 30 VDC, IP40, SS-01
Subminiature snap-action switches, type Omron SS.
Easy installation thanks to limiting of backlash from the housing, wide switching current range and (depending on the type) terminals for soldering or PCB mounting; Contact assembly: 1x changeover. Dielectric strength between live parts and ground: 1500 VAC (60 s). Mechanical switching rate: max. 400 cycles/minute. Ambient temperatures: –25 to +85 °C. Certifications: all types to UL and CSA, type SS-5 to VDE.
Low-load version with solder terminals, type SS-01.
Breaking capacity: 0.1 A/30 VDC, 0.1 A/125 VAC. Contact version: cross-bar contacts. Contact material: gold alloy.
Technical attributes (type, version, actuating force, max. contact resistance (in new state)): SS-01, with plunger, 1.47 N, 50 mohm
| Filter | Property | Value |
|---|---|---|
| Switching point | 8.4 mm ±0.5 mm | |
| Breaking capacity | 0.1 A/125 VAC, 30 VDC | |
| Latching switching function | On-On | |
| actuating force | 1.47 N | |
| Protection class | IP40 | |
| Actuator | pin plunger | |
| Connection | solder connection | |
| Design | straight |
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85365007 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
