D2MQ-1 | Omron

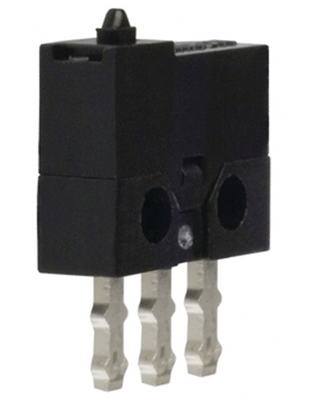

Snap acting switche, On-On, PCB connection, pin plunger, 1.18 N, 0.5 A/30 VDC, IP40, D2MQ-1
Unit Price (€ / pc.)
1.4161 € *
Available: 2,605 pcs.
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
25 pcs.
1.2019 €
100 pcs.
1.1186 €
250 pcs.
1.0591 €
1000 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale
Snap-action switches, type Omron D2MQ.
High functional safety, compact dimensions (6.5 x 8.1 x 2.7 mm); Contacts: silver-plated. Contact resistance: 100 mohm. Contacts: 1 x changeover. Switching voltage: 30 VDC. Switching current: 50 to 500 mA. Switching rate mechanical/electrical: 60/30 switching cycles/min. Mechanical useful life: min. 30000 switching cycles. Ambient temperatures: –15 to +70 °C. Version: with plunger (pretravel 0.4 mm, actuating force 1.18 N) or with molded plastic lever (pretravel approx. 2.4 mm, actuating force 0.59 N).
Type: D2MQ-1, with plunger
Technical specifications
| Filter | Property | Value |
|---|---|---|
| actuating force | 1.18 N | |
| Protection class | IP40 | |
| Latching switching function | On-On | |
| Breaking capacity | 0.5 A/30 VDC | |
| Design | straight | |
| Connection | PCB connection | |
| Actuator | pin plunger | |
| Switching point | 5.7 mm ±0.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
