PC20BU 6MM F1 47K LIN | Omeg
Conductive plastic potentiometer, 47 kΩ, 0.4 W, linear, solder pin, PC20BU 6MM F1 47K LIN
Order No.: 75E754
EAN: 4099879973962
MPN:
PC20BU 6MM F1 47K LIN
Unit Price (€ / pc.)
3.7485 € *
Available: 81 pcs.
Next delivery: 100 pcs. on 2025-05-21
Leadtime: 3 Weeks **
Total Price:
3.75 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7485 €
10 pcs.
3.3082 €
100 pcs.
2.8917 €
250 pcs.
2.7727 €
1000 pcs.
2.6061 €
*incl. VAT plus shipping costs
**Subject to prior sale

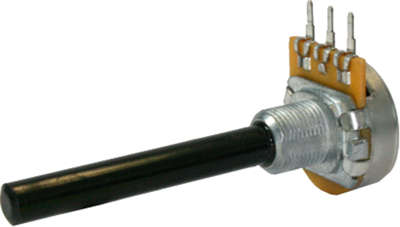

Conductive plastic potentiometer, type Omeg PC20BU F1.

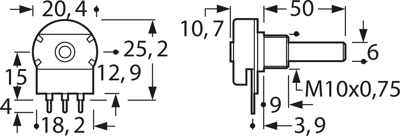

6.0 mm plastic shaft. Linear, for PCB mounting; Shaft length: 50 mm. Load rating: 0.4 W (at +40 °C). Operating temperatures: –25 to +70 °C. Tolerance: ±20 %. Adjustment range: 300° (effective 267°). Linearity: ±4.0 %. Insulation voltage: 1000 VAC. Useful life: 20.000 cycles. Bushing mount: M 10 x 0.75 mm.
Type: 47K
Technical specifications
| Track Taper | linear | |
| Assembly | angled | |
| Width | 10.7 mm | |
| Mechanic rotary range | 300 ° | |
| Power | 0.4 W | |
| Length | 20.4 mm | |
| axle diameter | 6 mm | |
| Version | conductive plastic potentiometer | |
| min. operating temperature | -25 °C | |
| Connection | solder pin | |
| max. operating temperature | 70 °C | |
| ohmic resistance | 47 kΩ |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85334010 |
Compliance
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
