PC20BU 6MM F1 22K LIN | Omeg

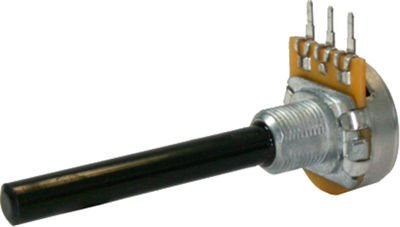

Conductive plastic potentiometer, 22 kΩ, 0.4 W, linear, solder pin, PC20BU 6MM F1 22K LIN
Order No.: 75E752
EAN: 4099879973955
MPN:
PC20BU 6MM F1 22K LIN
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: On Request
Conductive plastic potentiometer, type Omeg PC20BU F1.

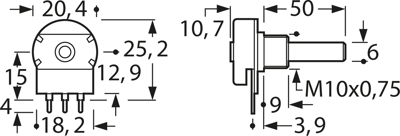

6.0 mm plastic shaft. Linear, for PCB mounting; Shaft length: 50 mm. Load rating: 0.4 W (at +40 °C). Operating temperatures: –25 to +70 °C. Tolerance: ±20 %. Adjustment range: 300° (effective 267°). Linearity: ±4.0 %. Insulation voltage: 1000 VAC. Useful life: 20.000 cycles. Bushing mount: M 10 x 0.75 mm.
Type: 22K
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 300 ° | |
| Power | 0.4 W | |
| Connection | solder pin | |
| max. operating temperature | 70 °C | |
| axle diameter | 6 mm | |
| Length | 20.4 mm | |
| Assembly | angled | |
| Width | 10.7 mm | |
| min. operating temperature | -25 °C | |
| Track Taper | linear | |
| ohmic resistance | 22 kΩ | |
| Version | conductive plastic potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
