PC20BU 6MM F1 220R LIN | Omeg
Conductive plastic potentiometer, 220 Ω, 0.4 W, linear, solder pin, PC20BU 6MM F1 220R LIN
Order No.: 75E740
EAN: 4099879973894
MPN:
PC20BU 6MM F1 220R LIN
Unit Price (€ / pc.)
3.5224 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
176.12 € *
Price list
Quantity
Price per unit*
50 pcs.
3.5224 €
100 pcs.
3.4867 €
250 pcs.
3.3558 €
1000 pcs.
3.1297 €
*incl. VAT plus shipping costs
Subject to prior sale

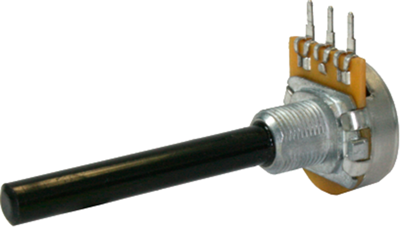

Conductive plastic potentiometer, type Omeg PC20BU F1.

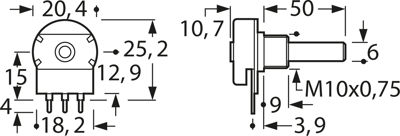

6.0 mm plastic shaft. Linear, for PCB mounting; Shaft length: 50 mm. Load rating: 0.4 W (at +40 °C). Operating temperatures: –25 to +70 °C. Tolerance: ±20 %. Adjustment range: 300° (effective 267°). Linearity: ±4.0 %. Insulation voltage: 1000 VAC. Useful life: 20.000 cycles. Bushing mount: M 10 x 0.75 mm.
Type: 220R
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 220 Ω | |
| Width | 10.7 mm | |
| Connection | solder pin | |
| Mechanic rotary range | 300 ° | |
| axle diameter | 6 mm | |
| max. operating temperature | 70 °C | |
| Power | 0.4 W | |
| min. operating temperature | -25 °C | |
| Version | conductive plastic potentiometer | |
| Assembly | angled | |
| Track Taper | linear | |
| Length | 20.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
