PC20BU 6MM F1 1M LIN | Omeg
Conductive plastic potentiometer, 1 MΩ, 0.4 W, linear, solder pin, PC20BU 6MM F1 1M LIN
Order No.: 75E762
EAN: 4099879974006
MPN:
PC20BU 6MM F1 1M LIN
Unit Price (€ / pc.)
7.5327 € *
Available: 46 pcs.
Total Price:
7.53 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5327 €
10 pcs.
6.6283 €
100 pcs.
5.8072 €
250 pcs.
5.5811 €
1000 pcs.
5.2241 €
*incl. VAT plus shipping costs
Subject to prior sale

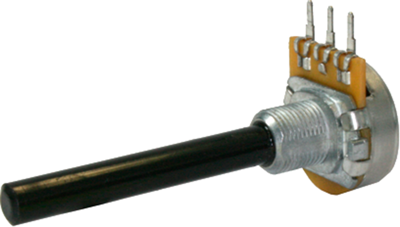

Conductive plastic potentiometer, type Omeg PC20BU F1.

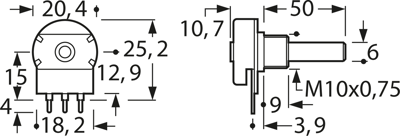

6.0 mm plastic shaft. Linear, for PCB mounting; Shaft length: 50 mm. Load rating: 0.4 W (at +40 °C). Operating temperatures: –25 to +70 °C. Tolerance: ±20 %. Adjustment range: 300° (effective 267°). Linearity: ±4.0 %. Insulation voltage: 1000 VAC. Useful life: 20.000 cycles. Bushing mount: M 10 x 0.75 mm.
Type: 1M0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 MΩ | |
| Width | 10.7 mm | |
| Connection | solder pin | |
| Mechanic rotary range | 300 ° | |
| axle diameter | 6 mm | |
| max. operating temperature | 70 °C | |
| Power | 0.4 W | |
| min. operating temperature | -25 °C | |
| Version | conductive plastic potentiometer | |
| Assembly | angled | |
| Track Taper | linear | |
| Length | 20.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
