B1606117 | OKW

ASA enclosure, (L x W x H) 55 x 46 x 17 mm, white (RAL 9016), IP65, B1606117

Order No.: 30H1846
EAN: 4099889510621
MPN:
B1606117
BODY-CASE L, ohne Vertiefung
Series: BODY-CASE
B1606117 OKW General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
17.6358 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.64 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6358 €
10 pcs.
16.5767 €
50 pcs.
15.9222 €
*incl. VAT plus shipping costs
Subject to prior sale

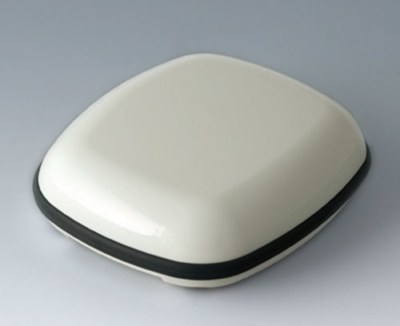

Body case, B1606117, OKW

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively. Wrist strap, fastening kit, lanyard etc. as accessories.

Technical specifications
Colour white
Degree of protection (IP) IP65
Width 46 mm
Height 17 mm
Length 55 mm
Material ASA
RAL number 9016
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
