A9530165 | OKW
ABS flat enclosure, (L x W x H) 150 x 85 x 45 mm, gray white (RAL 9002), IP40, A9530165
Unit Price (€ / pc.)
30.0118 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
30.01 € *
Price list
Quantity
Price per unit*
1 pcs.
30.0118 €
10 pcs.
28.2387 €
50 pcs.
27.1082 €
*incl. VAT plus shipping costs
Subject to prior sale

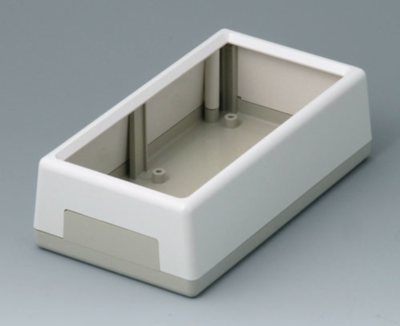

Flat-pack case, A9530165, OKW
Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| RAL number | 9002 | |
| Length | 150 mm | |
| Height | 45 mm | |
| Width | 85 mm | |
| Degree of protection (IP) | IP40 | |
| Colour | gray white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
