A9485107 | OKW

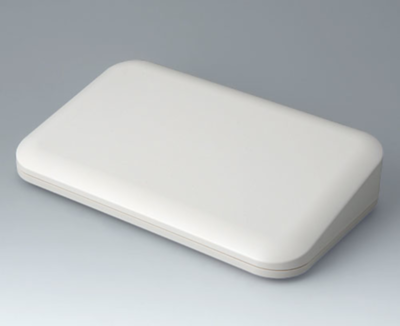

ASA+PC-FR enclosure, (L x W x H) 250 x 155 x 54 mm, gray white (RAL 9002), IP40, A9485107
Unit Price (€ / pc.)
31.9039 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
31.90 € *
Price list
Quantity
Price per unit*
1 pcs.
31.9039 €
10 pcs.
29.9880 €
50 pcs.
28.7980 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, A9485107, OKW
2-part enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray white | |
| Width | 155 mm | |
| Material | ASA+PC-FR | |
| Degree of protection (IP) | IP40 | |
| Height | 54 mm | |
| Length | 250 mm | |
| RAL number | 9002 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
