A9466107 | OKW
ASA+PC-FR enclosure, (L x W x H) 200 x 124 x 45 mm, gray white (RAL 9002), IP40, A9466107
Unit Price (€ / pc.)
29.0122 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
29.01 € *
Price list
Quantity
Price per unit*
1 pcs.
29.0122 €
10 pcs.
27.2748 €
50 pcs.
26.1800 €
*incl. VAT plus shipping costs
Subject to prior sale

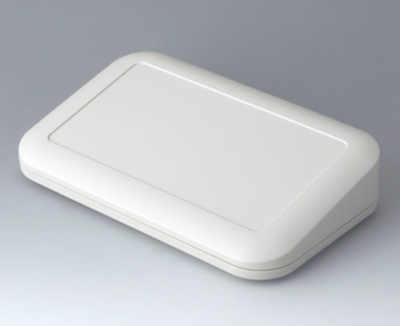

Enclosure, A9466107, OKW

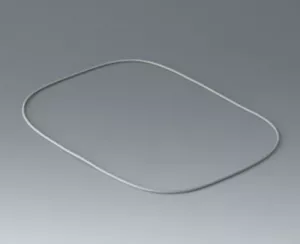

2-part enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ASA+PC-FR | |
| RAL number | 9002 | |
| Length | 200 mm | |
| Height | 45 mm | |
| Width | 124 mm | |
| Degree of protection (IP) | IP40 | |
| Colour | gray white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
