A9095108 | OKW

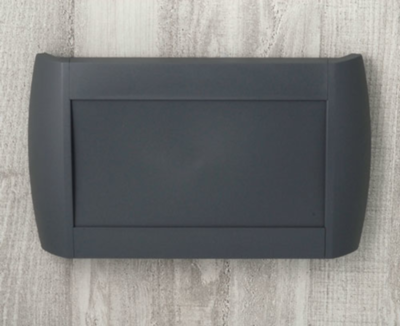

ABS enclosure, (L x W x H) 200 x 330 x 48 mm, lava, IP40, A9095108
Unit Price (€ / pc.)
66.4853 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
66.49 € *
Price list
Quantity
Price per unit*
1 pcs.
66.4853 €
10 pcs.
62.4869 €
50 pcs.
59.9879 €
*incl. VAT plus shipping costs
Subject to prior sale
Enclosure, A9095108, OKW
Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).
Technical specifications
| Colour | lava | |
| Degree of protection (IP) | IP40 | |
| Width | 330 mm | |
| Height | 48 mm | |
| Length | 200 mm | |
| Material | ABS |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
