A9075219 | OKW

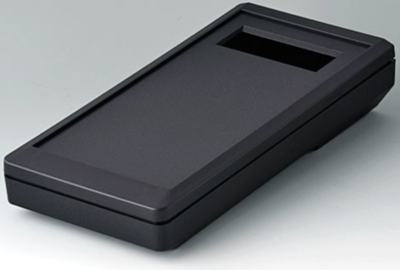

ABS handheld enclosure, (L x W x H) 252 x 121 x 50 mm, black (RAL 9005), IP65, A9075219
Order No.: 30H1387
EAN: 4099889509496
MPN:
A9075219
DATEC-MOBIL-BOX L, Ausf. II
Series: DATEC-MOBIL-BOX
Unit Price (€ / pc.)
53.0502 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
53.05 € *
Price list
Quantity
Price per unit*
1 pcs.
53.0502 €
10 pcs.
49.8491 €
50 pcs.
47.8618 €
*incl. VAT plus shipping costs
Subject to prior sale
Hand housing, A9075219, OKW
Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 50 mm | |
| Colour | black | |
| Degree of protection (IP) | IP65 | |
| Material | ABS | |
| Width | 121 mm | |
| RAL number | 9005 | |
| Length | 252 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
