A9075207 | OKW
ABS enclosure, (L x W x H) 252 x 121 x 50 mm, gray white (RAL 9002), IP65, A9075207
Order No.: 50H562
EAN: 4099889515848
MPN:
A9075207
DATEC-MOBIL-BOX L, Ausf. II
Series: DATEC-MOBIL-BOX
Unit Price (€ / pc.)
54.0260 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
54.03 € *
Price list
Quantity
Price per unit*
1 pcs.
54.0260 €
10 pcs.
50.7892 €
50 pcs.
48.7543 €
*incl. VAT plus shipping costs
Subject to prior sale

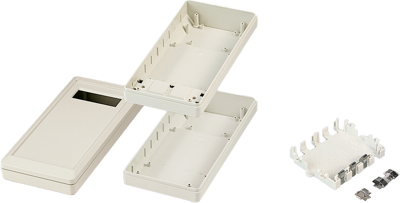

ABS enclosure, A9075207, OKW
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory. Top with display cutout for LCD modules of 20 characters x 4 lines.
Technical specifications
| Colour | gray white | |
| Degree of protection (IP) | IP65 | |
| Width | 121 mm | |
| Height | 50 mm | |
| Length | 252 mm | |
| Material | ABS | |
| RAL number | 9002 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
