A9073309 | OKW

ABS handheld enclosure, (L x W x H) 152 x 83 x 33.5 mm, black (RAL 9005), IP65, A9073309

Order No.: 30H1367
EAN: 4099889509298
MPN:
A9073309
DATEC-MOBIL-BOX S, Ausf. III
Series: DATEC-MOBIL-BOX
A9073309 OKW General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
36.4378 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
36.44 € *
Price list
Quantity
Price per unit*
1 pcs.
36.4378 €
10 pcs.
34.2601 €
50 pcs.
32.8916 €
*incl. VAT plus shipping costs
Subject to prior sale

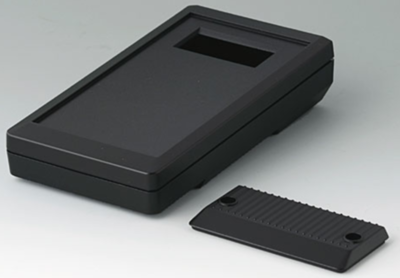

Hand housing, A9073309, OKW

Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Technical specifications
Colour black
Degree of protection (IP) IP65
Width 83 mm
Height 33.5 mm
Length 152 mm
Material ABS
RAL number 9005
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
