A9072127 | OKW
ABS Pocket enclosure, (L x W x H) 120 x 65 x 22 mm, gray white (RAL 9002), IP41, A9072127
Order No.: 30H1355
EAN: 4099889509175
MPN:
A9072127
DATEC-POCKET-BOX-L, Deckel gerastet
Series: DATEC-POCKET-BOX
Unit Price (€ / pc.)
20.3609 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.36 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3609 €
10 pcs.
19.1352 €
50 pcs.
18.3736 €
*incl. VAT plus shipping costs
Subject to prior sale

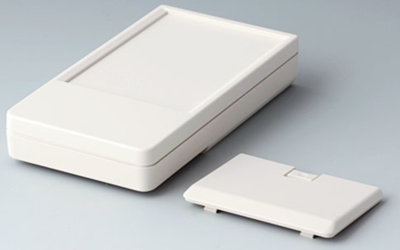

Pocket box, A9072127, OKW
Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 22 mm | |
| Colour | gray white | |
| Degree of protection (IP) | IP41 | |
| Material | ABS | |
| Width | 65 mm | |
| RAL number | 9002 | |
| Length | 120 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
